| 產品規格明細： |
|
|
|
|
|
|
| 溫度範圍 ： |
-50°C ~ +120°C (-58°F ~ +248°F) |
|
|
| |
|
-50°C ~ +600°C (-58°F ~ +1112°F) |
|
|
| 準確度 ： |
±2.5°C (-50°C ~ +350°C) |
|
|
|
| |
|
±4.5°F (-58°F ~ +662°F) |
|
|
|
| |
|
其他範圍 : ±0.0075 | t | |
|
|
|
| 可搭配各類型Type K溫度計使用。 |
|
|
|
|
| 適用管徑範圍 3mm ~ 48mm |
|
|
|
|
|
| 標準2M捲線藍色，黃色，綠色可搭配(可選) |
|
|
|
| Type J，Type T，Tpye E可搭配(可選) |
|
|
|
|
| 淨重： |
|
125公克 |
|
|
|
|
|
| 專利證號 M340448 |
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|

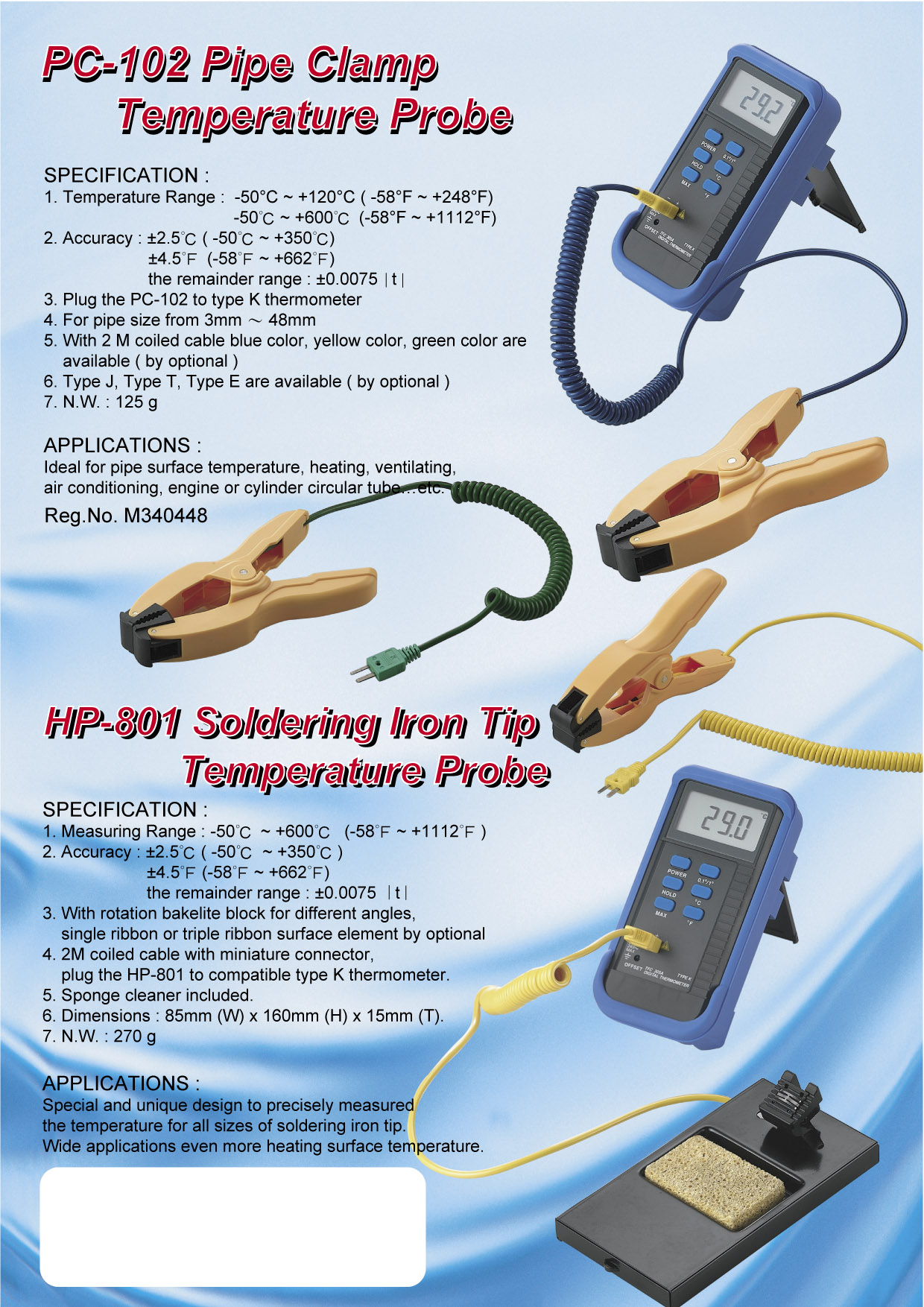

| SPECIFICATION: |
|
|
|
|
|
|
| 1. Temperature Range : |
-50°C ~ +120°C (-58°F ~ +248°F) |
|
| |
|
|
-50°C ~ +600°C (-58°F ~ +1112°F) |
|
| 2. Accuracy : |
|
±2.5°C (-50°C ~ +350°C) |
|
|
| |
|
|
±4.5°F (-58°F ~ +662°F) |
|
|
| |
|
|
the remainder range : ±0.0075∣t∣ |
|

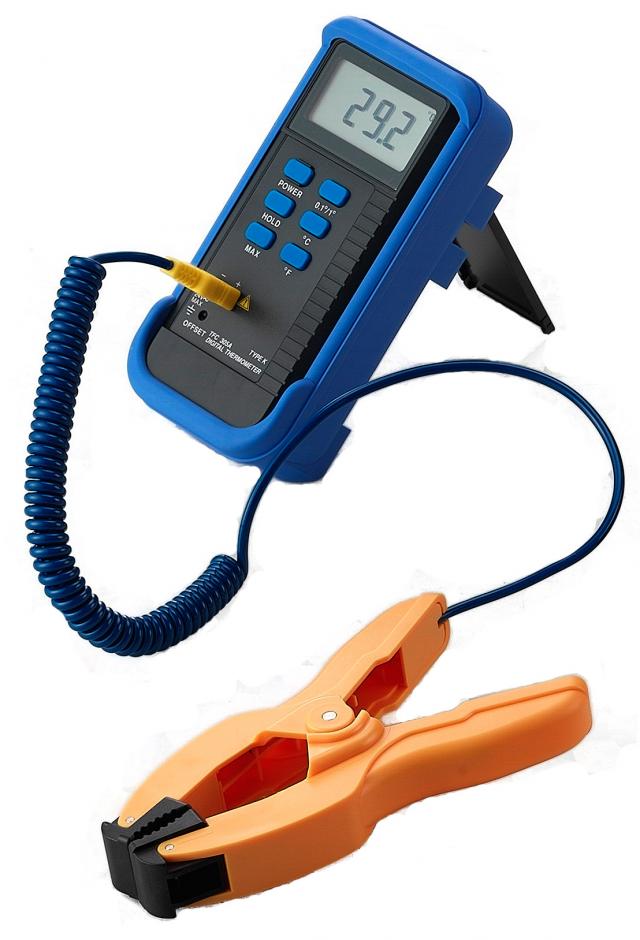

| 3. Plug the PC-102 to type K thermometer |
|
|
|
|
| 4. For pipe size from 3mm ～ 48mm |
|
|
|
|

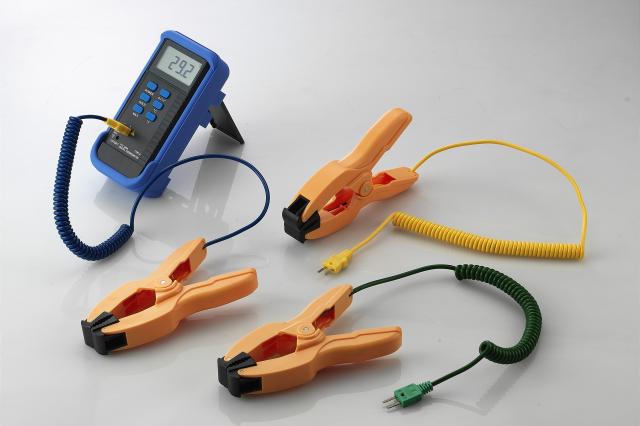

| 5. With 2 M coiled cable blue color, yellow color, green color are |
|
|
| available ( by optional ). |
|
|
|
|
|
| 6. Type J, Type T, Type E are available ( by optional ). |
|
|
| 7. N.W. : |
|
|
125 g |
|
|
|
|
| Reg. No. M340448 |
|
|
|
|
|
|
