| 產品規格明細： |
|
|
|
|
|
| 溫度範圍 ： |
-50°C ~ +600°C (-58°F ~ +1112°F) |
|
| 準確度 ： |
±2.5°C (-50°C ~ +350°C) |
|
|
| |
|
±4.5°F (-58°F ~ +662°F) |
|
|
| |
|
其他範圍 : ±0.0075 | t | |
|
|
| 可轉動的電木量測座，適用各種角度量測。 |
|
|
| 可提供單片或三片式測溫元件。 |
|
|
|
| 標準2M捲線附Type K(CA) 接頭，可搭配各類型Type K(CA)溫度計使用。 |
| 本產品包含1片烙鐵頭清潔泡棉。 |
|
|
|
| 外觀尺寸： |
85mm (W) x 160mm (H) x 15mm (T)。 |
|
| 淨重： |
|
270公克 |
|
|
|
|
| 專利證號 M403646 |
|
|
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|

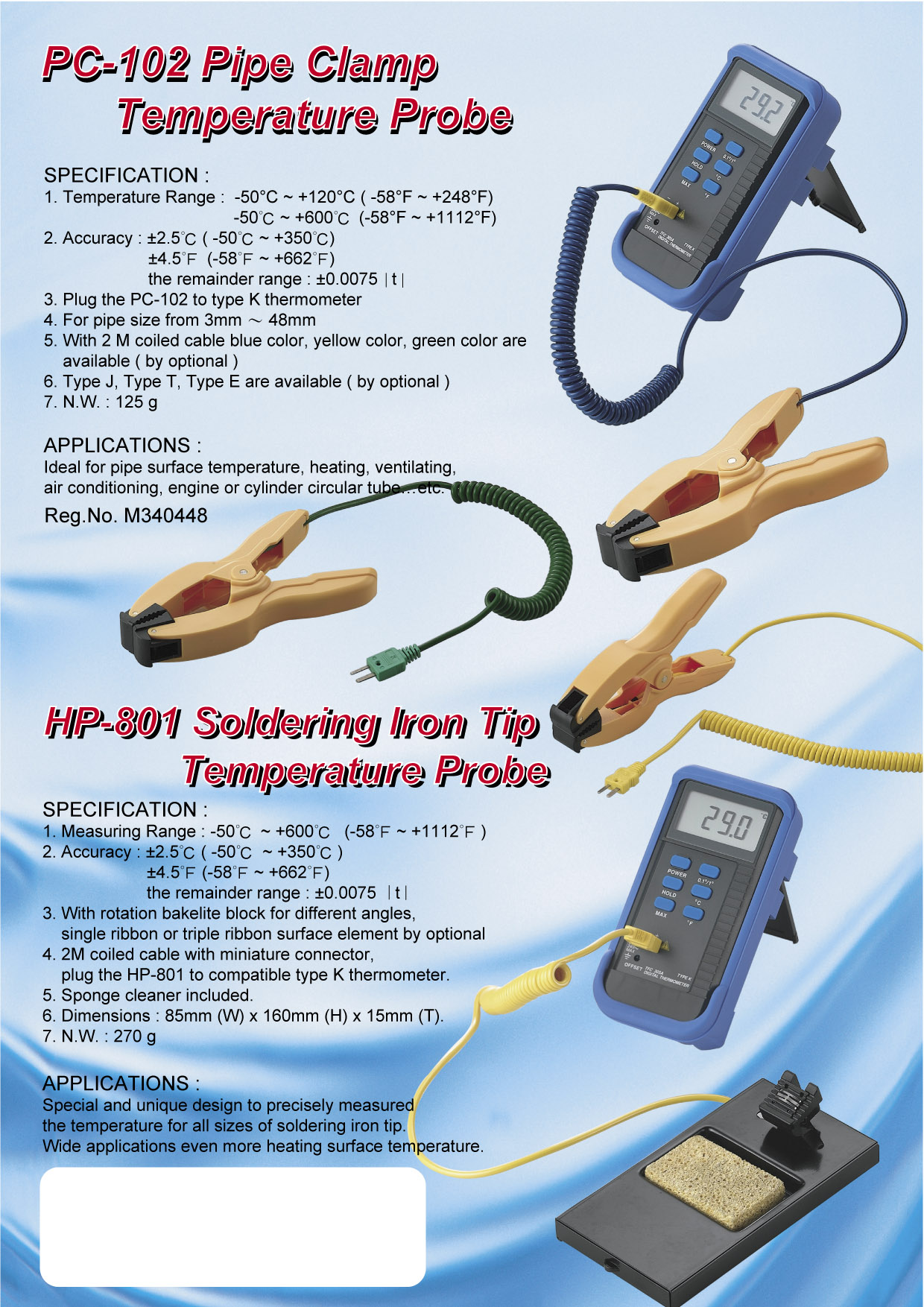

| SPECIFICATION: |
|
|
|
|
|
| 1. Measuring Range : |
-50°C ~ +600°C (-58°F ~ +1112°F) |
|
| 2. Accuracy : |
±2.5°C (-50°C ~ +350°C) |
|
|
| |
|
±4.5°F (-58°F ~ +662°F) |
|
|
| |
|
the remainder range : ±0.0075∣t∣ |
|
| 3. With rotation bakelite block for different angles, |
|
|
| single ribbon or triple ribbon surface element by optional. |
|
| 4. 2M coiled cable with miniature connector, |
|
|
|
| plug the HP-801 to compatible type K thermometer. |
|
|
| 5. Sponge cleaner included. |
|
|
|
|
| 6. Dimensions : |
85mm (W) x 160mm (H) x 15mm (T). |
|
| 7. N.W. : |
|
270 g |
|
|
|
|
| Reg. No. M403646 |
|
|
|
|
產品編號：
