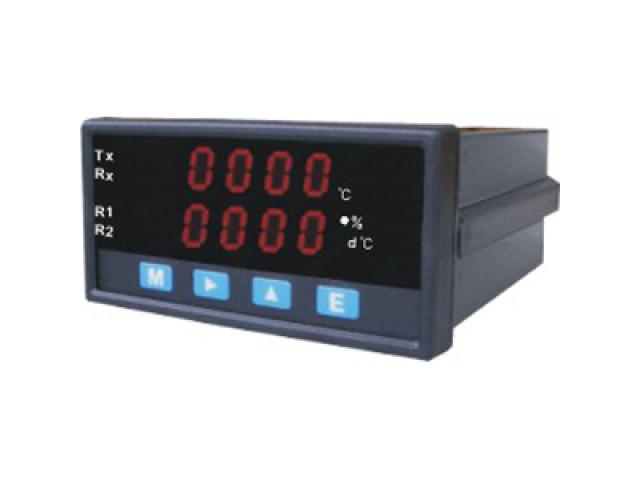

SPECIFICATION:

Display :                 Red LED 0.4" high

Max. Display :        4 digits ( Auto range)

Conversion Rate :   1/sec.

Isolation :                Input / Output / Power

Memory :                EEPRON

Accuracy :              Temp. : ±0.5°C

                              Humidity : ±3% FS.

Operating Temp. :   0°C ~ +60°C / Below 80%R.H.

Storage Temp. :      -10°C ~ +70°C / Below 70% R.H.

Power Supply :       AC 115/230V ±10%, 50/60Hz

Power Consumption :   Approx. 4VA

Insulation Resistance :   More than 100MΩ at 500VDC

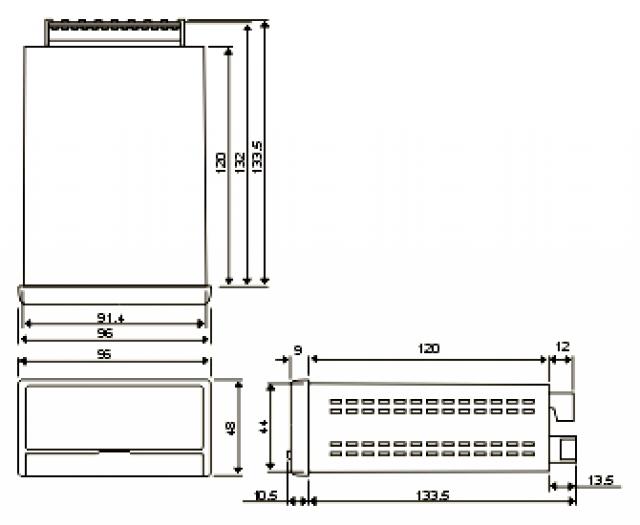

Dimensions :           96(W) x 48(H) x 112.5(D)mm

Panel Cut-Out :       91.4(W) x 44(H)mm

Input

Temperature :         -30.0°C ~ +120.0°C

Humidity :              0~100.0% R.H.

Relay Output

Control System :    Microcomputer

Setting Range :       Free setting

Temperature :         -30.0°C ~ +120.0°C

Humidity :              0~100.0% R.H.

Relay Contact Capacity :    AC 250V, 5A resistive load

                                         DC 30V, 5A resistive load

Output (option)

RS-485 interface

Address :                1 ~ FF (16Hex)

Baudrate :                19200, 9600, 4800, 2400

Frame :                    N.8.2, E.8.1, O.8.1, N.8.1

Protocol :                Modbus RTU Mode
