| ‧目前位置：產品介紹 / 觸控式螢幕 / A系列 / |
|
|

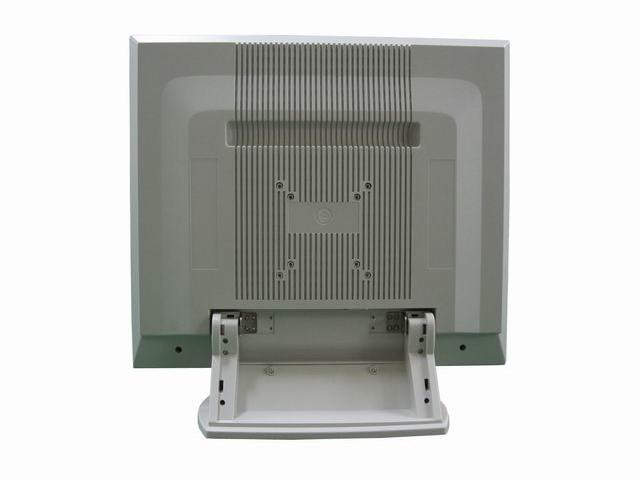

| TSIC-A17 17” TFT-LCD Touch Monitor 觸控式螢幕 |
|
 產品編號： |
TSIC-A17 |
|
|
| 產品說明： |
| 17" TFT-LCD Touch Monitor |
|
|
|
|
|
|
|
| 產品內容： |
| - Product Specification - |
| Configuration |
TSIC-A17" |
| LCD Display |
|
17" TFT active matrix panel |
| Display Size |
|
337.9(H)x270.3(V) mm |
| Pixel Pitch |
|
0.264(H)x0.264(V) mm |
| Max. Resolution |
|
SXGA 1280x1024 |
| Contrast Ratio |
|
500：1 |
| Brightness |
|
250 cd/m2 |
| Response Time |
|
40 ms |
| Display Color |
|
16M |
| Viewing Angle |
L/R |
+85o~-85o |
| |
U/D |
+85o~-85o |
| PC Interface |
Video |
RGB analog 0.7V peak to peak |
| |
Sync. |
TTL positive or negative |
| Signal Connector |
Analog |
D-sub 15 pin |
| |
Digital (optional) |
DVI 24 pin |
| Front Control |
|
Power on/off with LED, Menu, Select, Adjustment (+,-) |
| Plug & Play |
|
DDC1/2B compatible |
| Speakers |
|
1W / per channel driver |
| Power Adapter |
|
Input AC 100~240V, 50~60Hz; Output DC 12V / 2.5A(min) |
| Operating |
Temperature |
5oC~35oC (41oF~95oF) |
| Conditions |
Humidity |
20%~80% (no condensation) |
| |
Altitude |
To 10,000 feet |
| Storage |
Temperature |
-20oC~60oC (-4oF~140oF) |
| Conditions |
Humidity |
10%~90% (no condensation) |
| Optional Module |
|
Analog, Dual inputs, Adjustable arm |
| Dimensions (HxWxD mm) |
|
457 x 448 x 64 |
| Certification |
|
UL, C-UL, FCC-B, CE, BSMI, |
| Optional LCD Panel |
|
CMO / AU / LG / SAMSUNG |
| Additional Feature |
|
3M Touch / ELO Touch / Resistive Touch |
|
|
|
|
 |
|
|
|
|
|
