| - Product Specification - |
| Configuration |

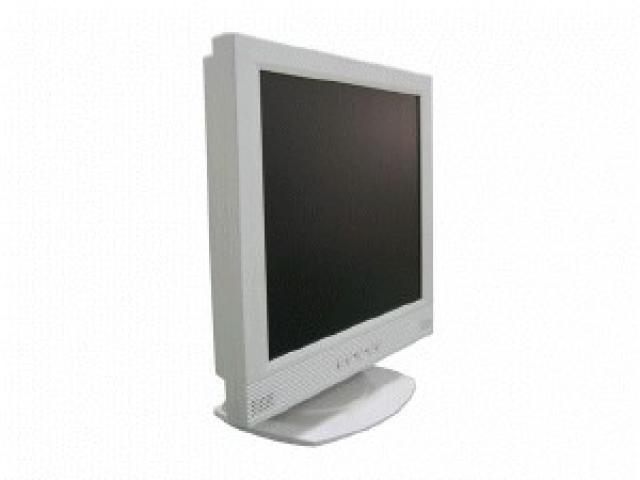

TSIC-A19" |
| LCD Display |
|
19.0" TFT active matrix panel |
| Display Size |
|
376.32 (H) x 301.056 (V) mm ( 19" Diagonal ) |
| Pixel Pitch |
|
0.294 (H) x 0.294 (V) |
| Max. Resolution |
|
SXGA 1280x1024 |
| Contrast Ratio |
|
500：1 |
| Brightness |
|
250 cd/m2 |
| Response Time |
|
25 ms |
| Display Color |
|
16M |
| Viewing Angle |
L/R |
+85o~-85o |
| |
U/D |
+85o~-85o |
| PC Interface |
Video |
RGB analog 0.7V peak to peak |
| |
Sync. |
TTL positive or negative |
| Signal Connector |
Analog |
D-sub 15 pin |
| |
Digital (optional) |
DVI 24 pin |
| Front Control |
|
Power on/off with LED, Menu, Select, Adjustment (+,-) |
| Plug & Play |
|
DDC1/2B compatible |
| Speakers |
|
1W / per channel driver |
| Power Adapter |
|
Input AC 100~240V, 50~60Hz; Output DC 12V / 4A |
| Operating |
Temperature |
5oC~35oC (41oF~95oF) |
| Conditions |
Humidity |
20%~80% (no condensation) |
| |
Altitude |
To 10,000 feet |
| Storage |
Temperature |
-20oC~60oC (-4oF~140oF) |
| Conditions |
Humidity |
10%~90% (no condensation) |
| Optional Module |
|
Analog, Dual inputs, Adjustable arm |
| Additional Feature |
|
3M Touch / ELO Touch / Resistive Touch |
